UniversalSaftSwitch

UniversalSaftSwitch - your power under your control

type:
hardware, smartspace, kitchenstarter
volume:
150,000 Points
mitglieder:
mrks, mirwi, ralf
description:

Building our own *Power Relais*

deadline:
2014-08-13
task:
programming, coding, design

These simple devices are able to power on and off devices using a low current Relais. The deployed relais is able to switch current up to 16A@230VAC.

The circuit itself takes 24VDC as input voltage and consumes about 8mA@24VDC=0.2W in idle mode and 25mA@24VDC=0.6W in switched mode.

Version 1.1, Prototype

First self-made Hardware Prototype

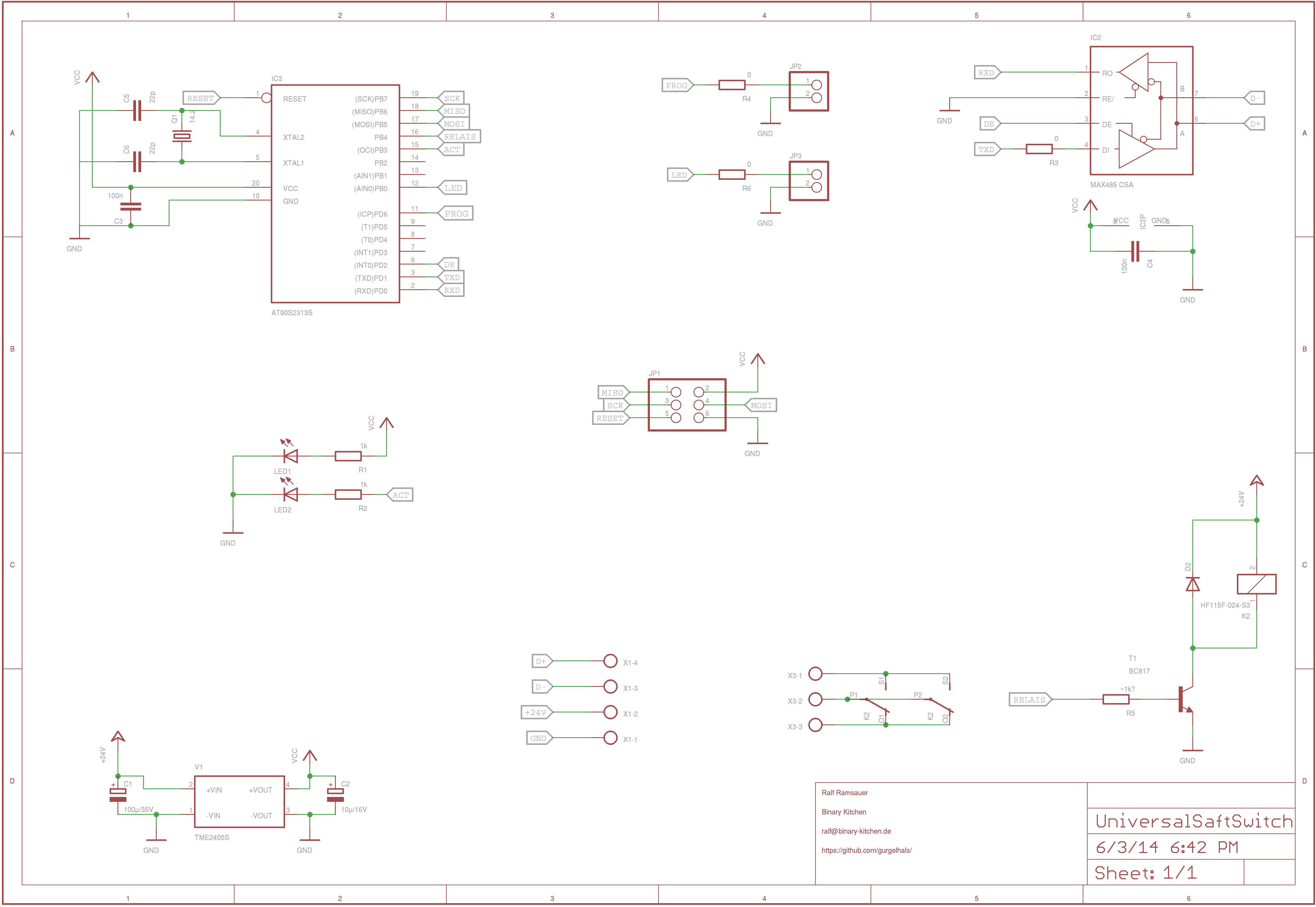

The software as well as schematics are available on Github

The RS485 protocol follows the specifications of our RS-485 Hausbus Protokoll

Mirwi - comments on Schematics, PCB Routing
Mrks - Prototyping
Ralf - Idea, Software, Schematics, PCB routing
